Standalone aerosol fire extinguishing unit with a thermal starter AGS 12/0,3 (AGS 12/1)

Standalone aerosol fire extinguishing unit with a thermal starter AGS 12/0,3 is a saturation extinguisher and intended to control and extinguish fires of flammable and combustible liquids, solid fuels and electrical equipment, including energized one.

Question to purchase
Description

old article: AGS 12/0,3

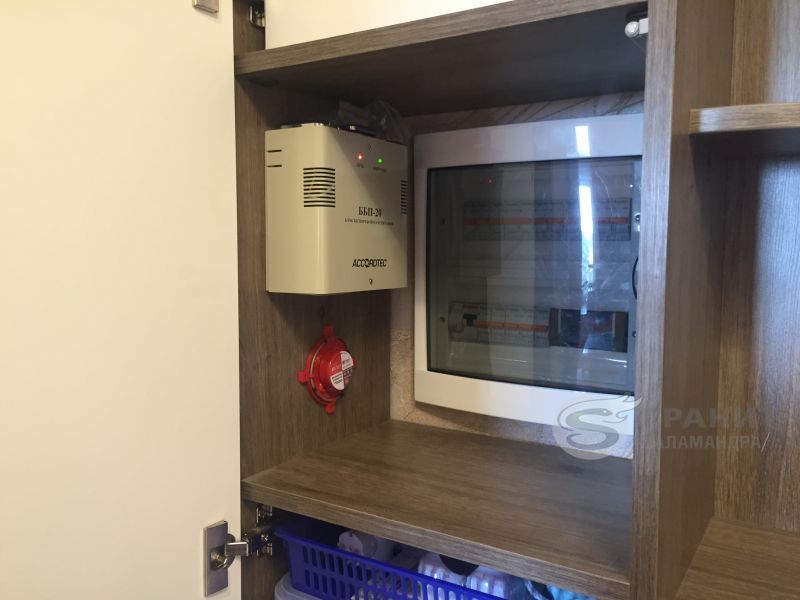

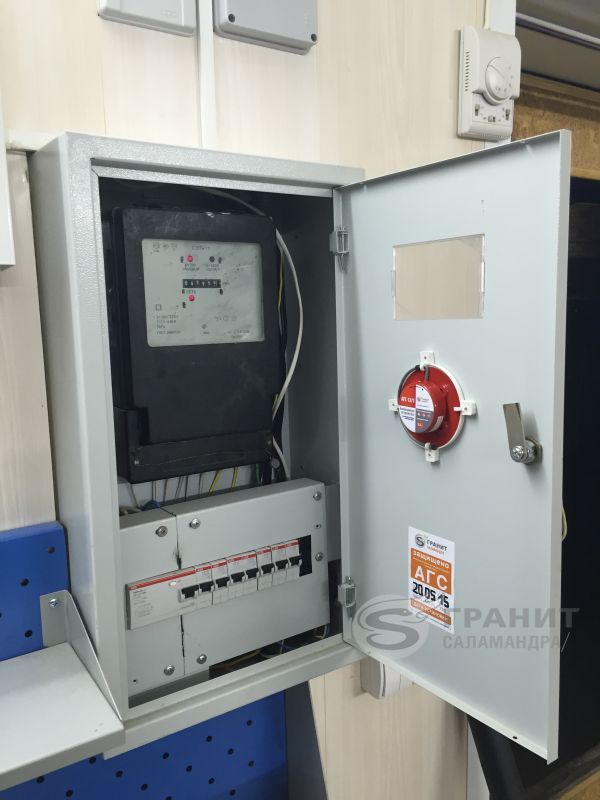

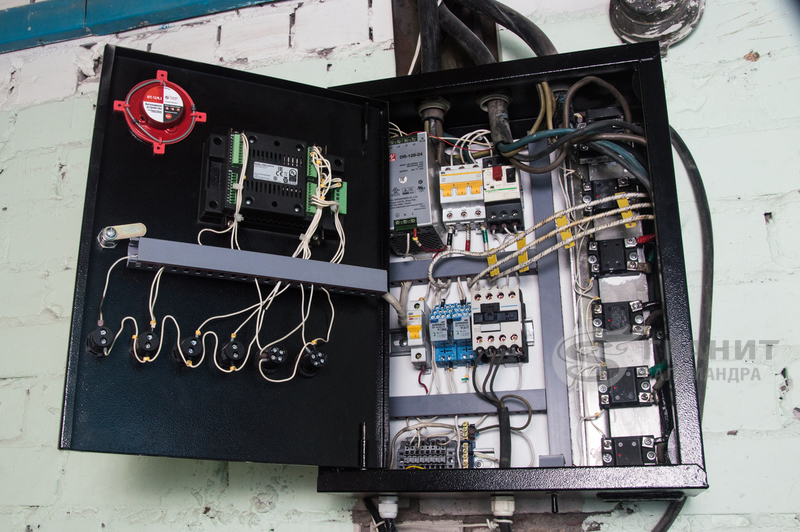

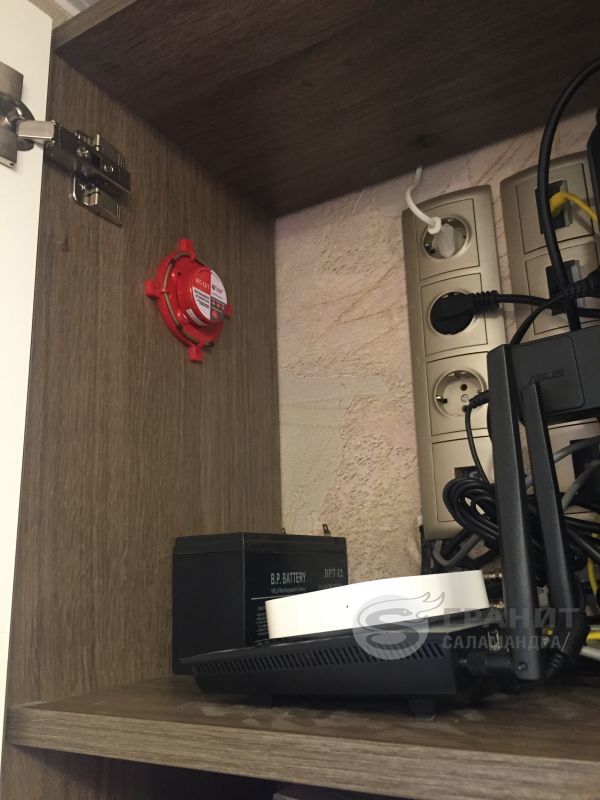

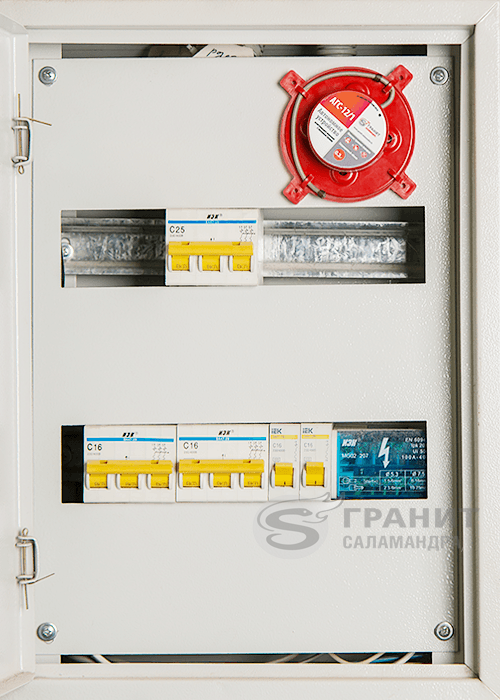

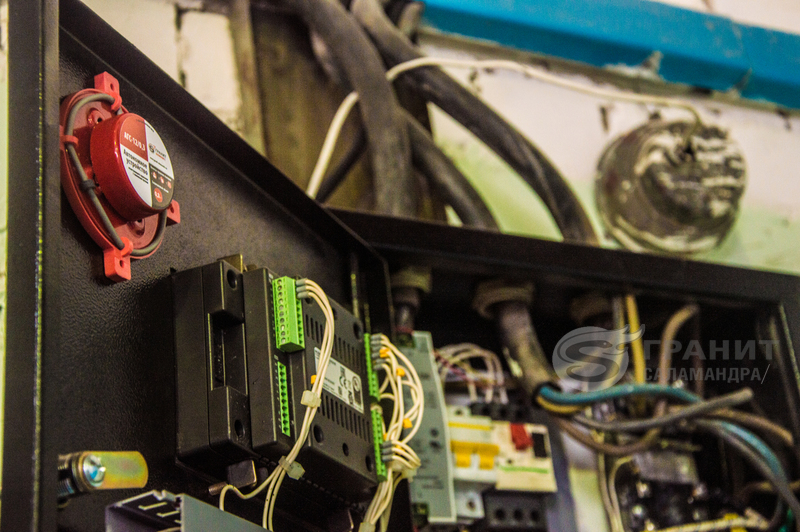

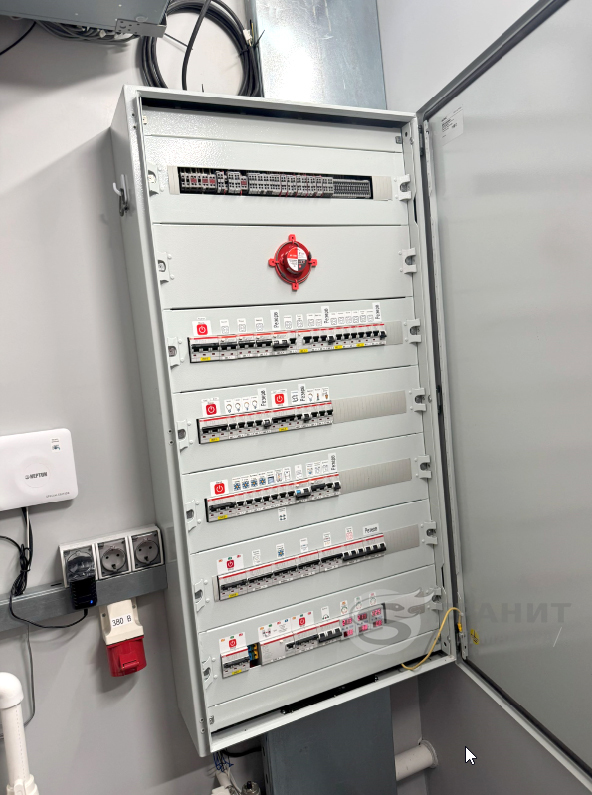

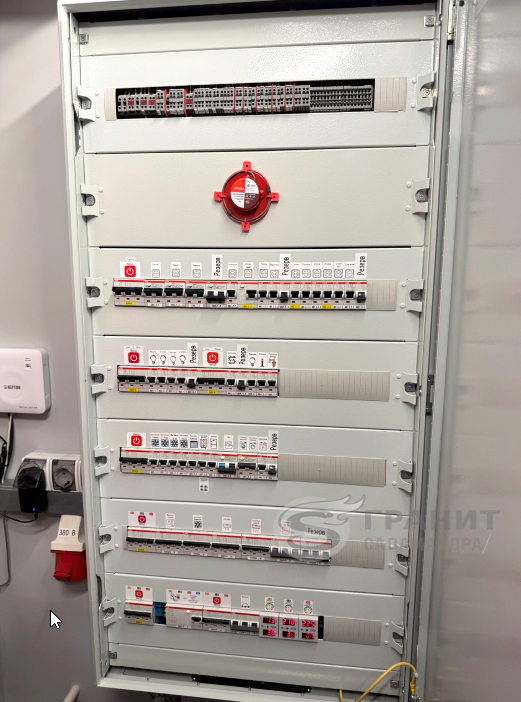

The generator AGS 12/0,3 is used for fire protection of small volumes (electric cabinets, engine compartments, etc.), including vehicles.

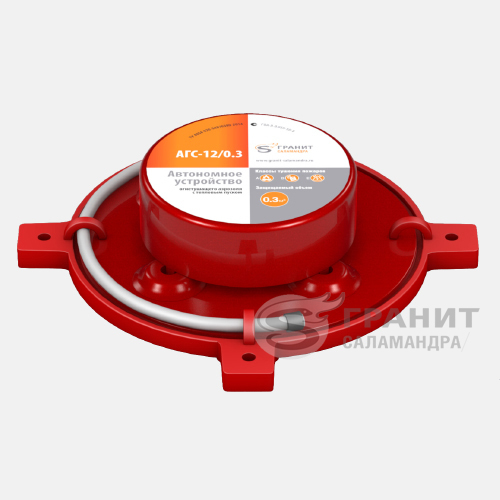

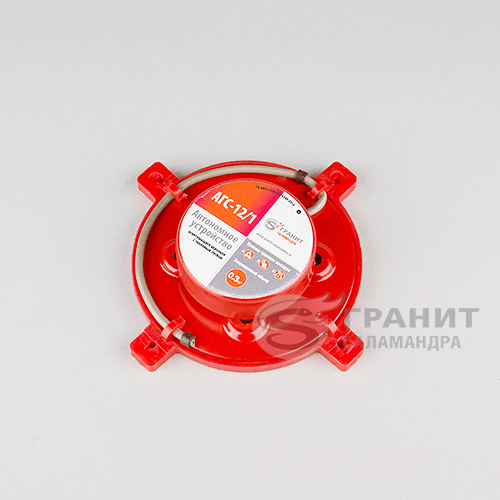

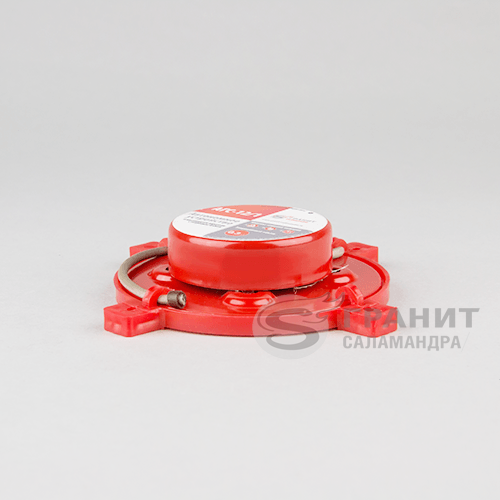

Standalone aerosol fire extinguishing unit consists of the body, which houses the aerosol-forming block, and the activation unit. The aerosol-forming block is separated from the upper lid and the bottom of the generator body by heat shield material. On the side surface of the body, there is a slot nozzle, through which the aerosol exits

Manufacturer's warranty:

  • The manufacturer guarantees the unit to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
  • The warranty period for the unit- 18 months.
  • Exploitation period - 5 years.
  • Service period - 10 years.
Тех. характеристики

Weight of the unit, kg

0,1+0,01

Weight of aerosol-forming charge, kg

0,015 ± 0,02

Fire control capability, kg/m³

0,05

Maximal protected volume of the nominally tight room (δ* < 0,001m-1), m³

0,3

Dimensions, mm (diameter х height)

75 х 20

Operating time, sec

5 + 0,5

Classes of fire fighting



*δ - the ratio of the total area is permanent of door openings to the volume of the protected room.

Operating principle

Operating Principle

By applying an electrical or thermal pulse to the activation unit the aerosol-forming block ignites, the combustion of which forms gas-aerosol fire-extinguishing mixture consisting of fine particulates (potassium salts being potent inhibitors) about 70% of the original weight of the composition and the gas phase, which enters the protected volume.

Pre-starting procedure

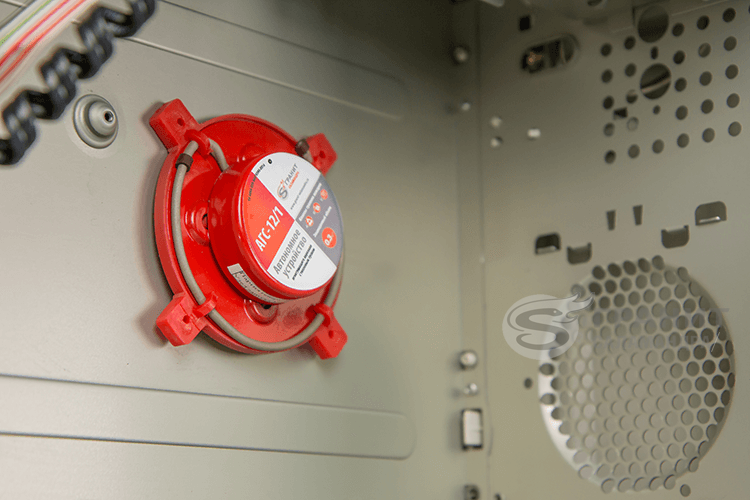

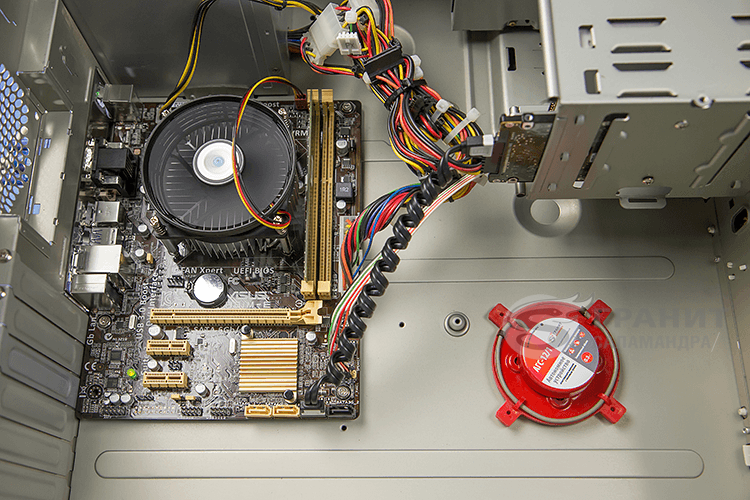

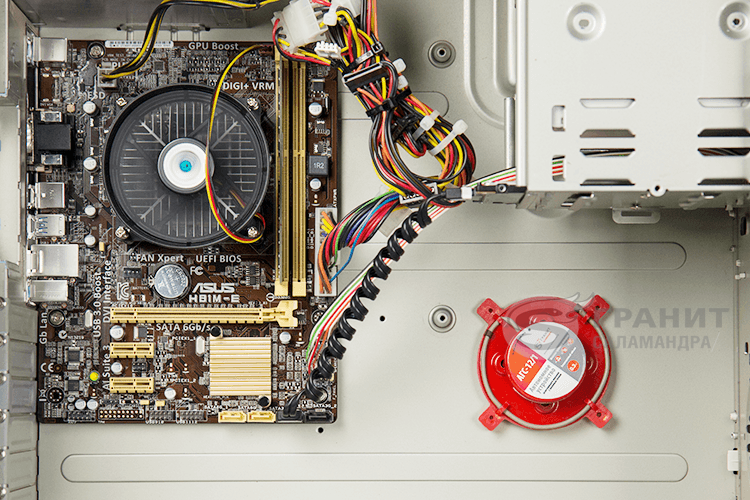

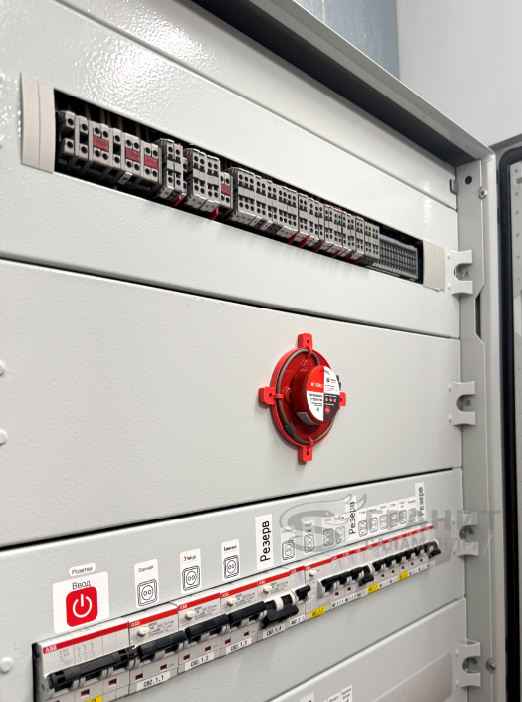

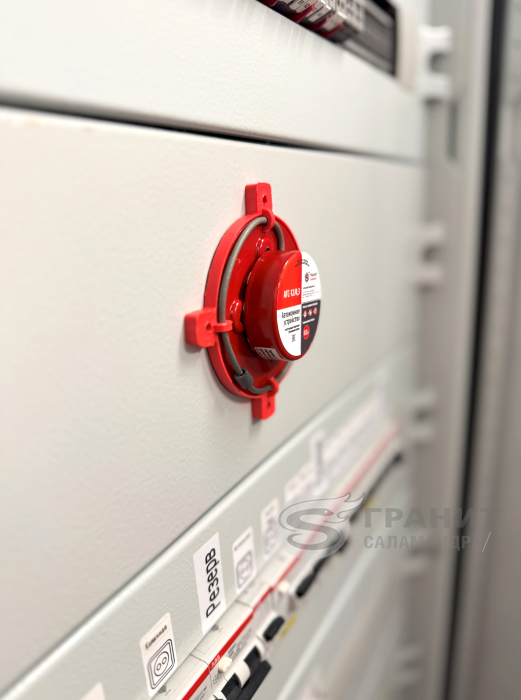

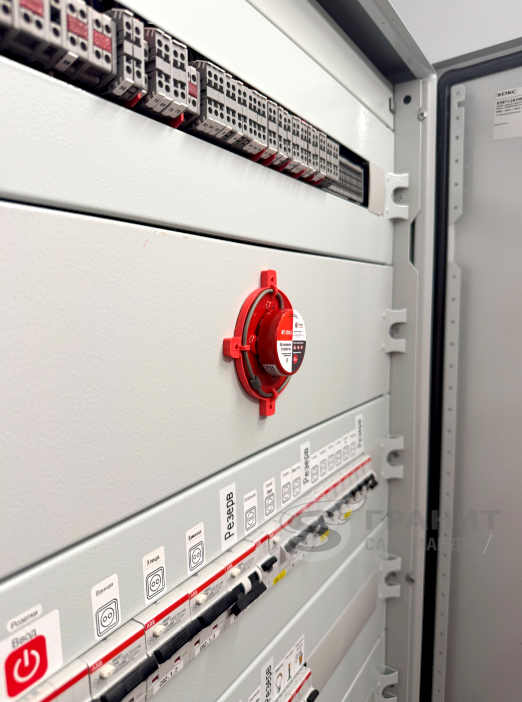

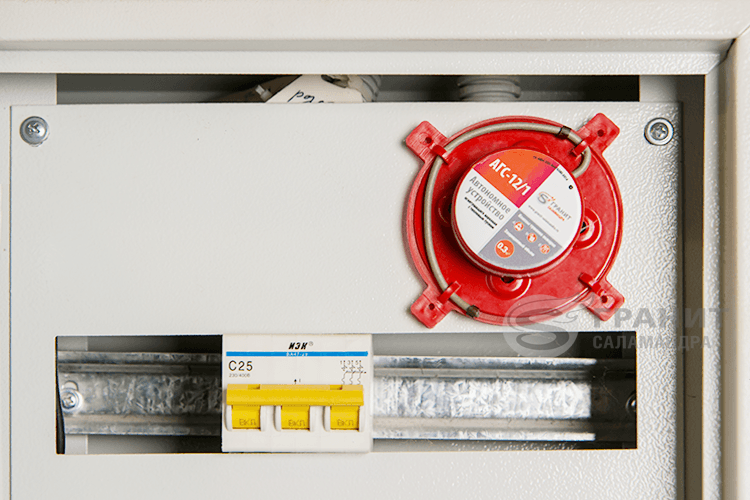

Standalone aerosol fire extinguishing unit with a thermal starter AGS 12/1 shall be installed on the enclosing structures.

Fastening is carried out using different types of hardware through 3mm diameter holes or double sided tape.

  Before tape fastening, you must degrease the surface for the installation of the product.

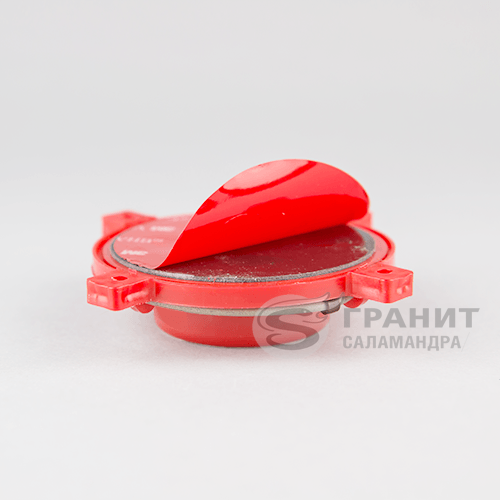

  Remove the protective film from the back of the unit AGS 12/0,3.
  Press firmly to the surface.
  Fastening is possible using hardware

Installation by tape should be in a heated room, under normal climatic conditions, then a temperature mode should not be changed for 3 hours.

Drawings
Схема

Download, PDF (150 Kb)
