Aerosol Fire-Extinguishing Generator AGS-6/2

Designed for generating gas-aerosol mixture at the concentrations required to stop a fire.

It is recommended to form fire-extinguishing systems for premises of average volumes.

Question to purchase
Description

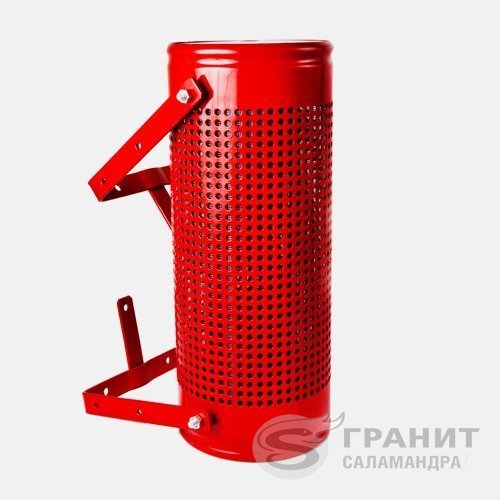

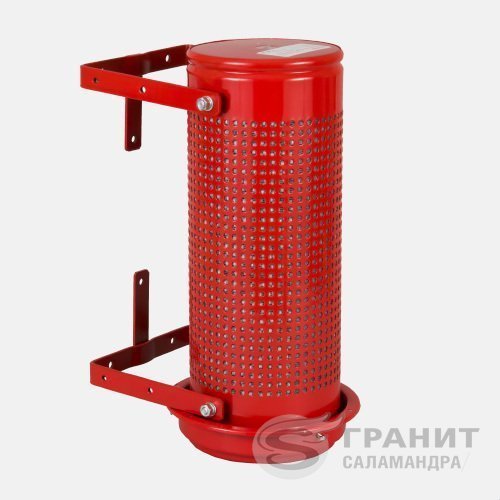

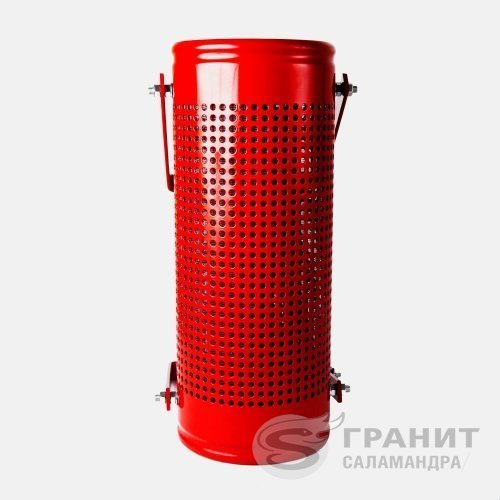

The generator is a small cylinder with a metal case, on the lateral surface of which are located the outlets in a certain order. The contact cooler inside the body of the generator allows for the creation of the aerosol stream of low temperature.

Principle of operation:

By applying an electrical or thermal pulse to the activation unit, a solid aerosol charge is ignited. Combustion products passing through the contact cooler go through the outlets of the generator in the protected space.

Manufacturer's warranty:

The manufacturer guarantees the generator to abide by the technical requirements and Russian standards if the consumer adheres to the conditions specified in the instruction manual.

The warranty period for the generator - 18 months.

Utilization Period - 5 years.

Lifetime - 10 years.

Specifications

Maximum protected volume conditionally sealed room
(d * <0,001 m-1)

52 m3

Curb weight of the generator

14.0 kg

Weight aerosol charge

3.5 kg

Working time

40

Dimensions

Width

294 mm

Height

420 mm

Activation unit

BP-7.5-7.5 VRTH

VEE, VELTH

Resistance of the activation unit

7.5± 0.8 ohm

2.5 – 4 ohm

Minimum start-up current

0.4 А

Starting voltage

8 – 30

1.5 – 24

The duration of the trigger pulse

not less than 1.5 sec

not less than 0.1 sec

The inertia of the generator start

<1.5 sec

Operating Conditions

Operating Temperature Range

± 50 °С.

relative humidity at 25 ° C.

98 %

mechanical influences (in the frequency range up to 100 Hz)

1g

Classes of fire-fighting
