Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.
Applies to:
AGS-11/2 is recommended for the protection of vehicles, electronic equipment, high-voltage power installations, various high-frequency devices operating in including vehicles, since it corresponds to the requirements of vibration loads on railway / road and air transport.

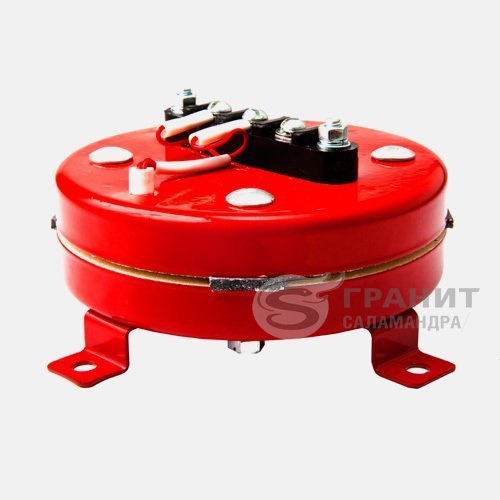

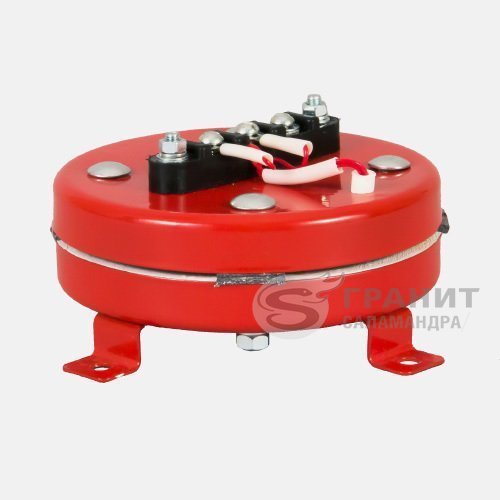

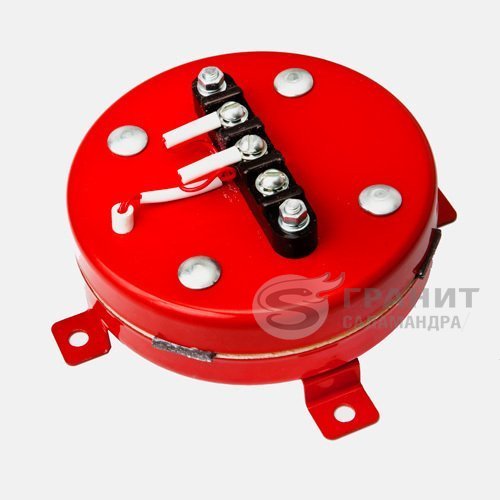

AGS-11/2 is a compact, low metal cylindrical body with a nozzle opening on the exterior side. With its small size, the generator provides a significant protective capacity - up to 3,4m3.
By changing the design of the system, the mass fraction of the condensed phase has been significantly reduced and lowered the temperature of the generator frame.
Principle of operation:

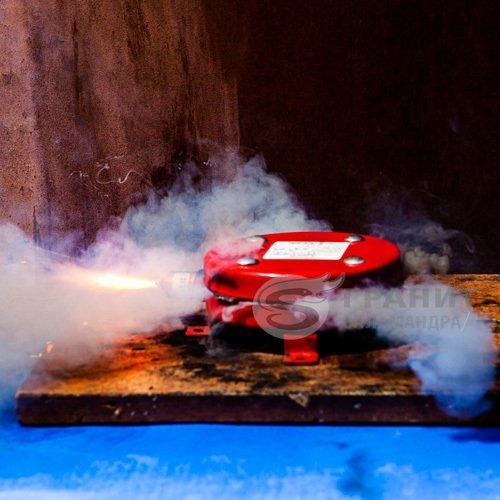

By applying an electrical or thermal pulse on activation node *a solid aerosol charge is ignited. Products of combustion exit through the nozzle gap of the generator and enter the protected area.
Manufacturer's warranty:
The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
The warranty period for the generator - 18 months.
Exploitation period - 5 years.
Service period - 10 years.
Maximum protected volume of conditionally sealed room |
3,4m3 |
Curb weight of the generator |
0,85kg |
Weight of the aerosol charge |
0.17 kg |
Working time |
11 |
Dimensions |
|
Diameter |
150 mm |
Height |
65 mm |
Activation starter |
UST-7.5 |
Resistance of the activation starter |
7,8 ± 0,8 Ohm |
Minimum start-up current |
1.5А |
Starting voltage |
2 |
The duration of the trigger pulse |
not less than 2.0 sec |
The inertia of the generator starter |
<1.5 sec |
Operating Conditions |
|
Operating Temperature Range |
± 50 °С. |
relative humidity at 25 ° C. |
98% |
Классы тушения пожаров |
|
