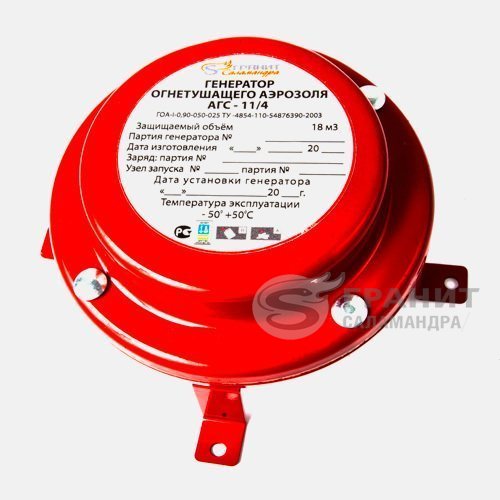

Universal Air Cooled Generator AGS-11/4
Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.
Applies to:
AGS-11/4 is recommended for the protection of vehicles, electronic equipment, high-voltage power installations, various high-frequency devices operating in including vehicles, since it corresponds to the requirements of vibration loads on railway / road and air transport.

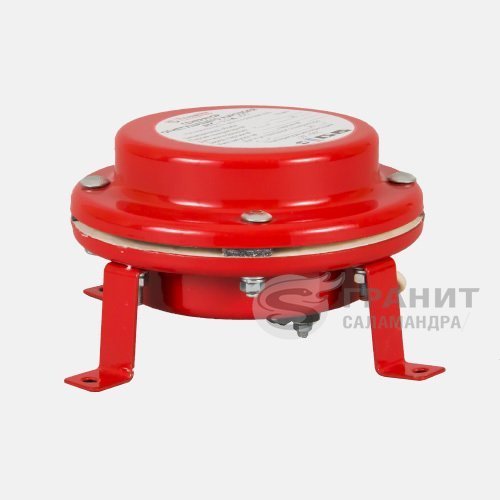

AGS-11/4 is a compact, low metal cylindrical body with a nozzle opening on the exterior side. With its small size, the generator provides a significant protective capacity - up to 18,0m3.
By changing the design of the system, the mass fraction of the condensed phase has been significantly reduced and lowered the temperature of the generator frame.
Principle of operation:
By applying an electrical or thermal pulse on activation node *a solid aerosol charge is ignited. Products of combustion exit through the nozzle gap of the generator and enter the protected area.
Manufacturer's warranty:
The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
The warranty period for the generator - 18 months.
Exploitation period - 5 years.
Service period - 10 years.
|
Maximum protected volume of conditionally sealed room |
18,0m3 |
|
Curb weight of the generator |
2.0 kg |
|
Weight of the aerosol charge |
0.9 kg |
|
Working time |
25 |
|
Dimensions |
|
|
Width |
214 mm |
|
Height |
97 mm |
|
Activation starter |
UST-7.5 |
|
Resistance of the activation starter |
7,8 ± 0,8 Ohm |
|
Minimum start-up current |
1.5А |
|
Starting voltage |
12 |
|
The duration of the trigger pulse |
not less than 2.0 sec |
|
The inertia of the generator starter |
<2.0 sec |
|
Operating Conditions |
|
|
Operating Temperature Range |
± 50 °С. |
|
relative humidity at 25 ° C. |
98% |
|
Classes of fire-fighting |
   |
-1519131300.png "AGS-11/4-03")
AGS-11/4-03
Output aerosol around the perimeter of 360 °
-1519131309.png "AGS-11/4-00")
AGS-11/4-00
Output aerosol sector 150 °
-1519131314.png "AGS-11/4-07")
AGS-11/4-07
Output aerosol in two sectors of 80 °
