and aerosol fire extinguishing systems

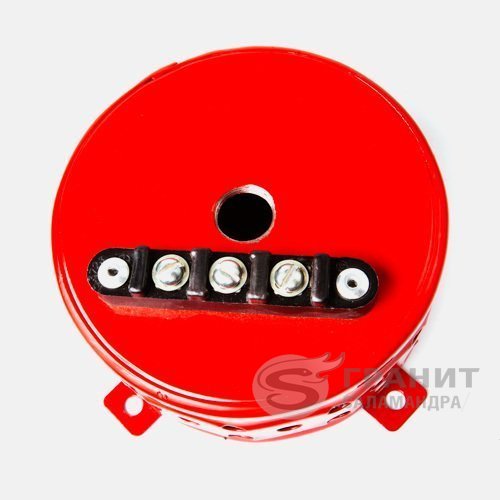

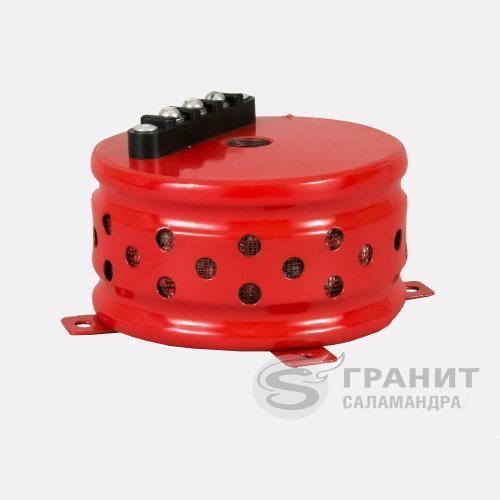

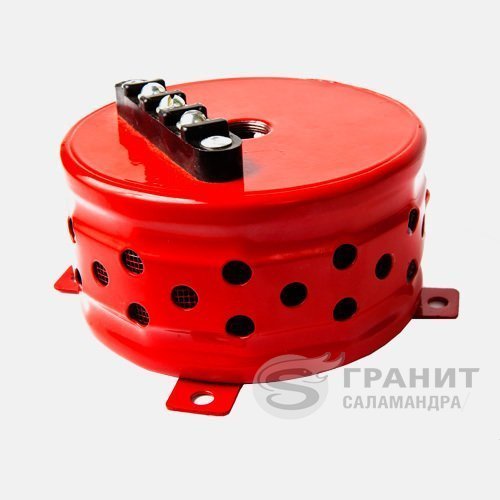

Fire Extinguishing Aerosol Generator AGS-6/1
Designed for generating a gas-aerosol mixture at the concentrations required to stop a fire.
AGS-6/1 is recommended for the protection of electronic equipment, high-voltage power installations, various high-frequency devices operating in vehicles, as well as for the protection of vehicles, since it corresponds to the requirements for vibration loads on railway / road and air transport .
|
Maximum protected volume in sealed room (d * <0,001 m-1) |
3.2 m3 |
|
|
Curb weight of the generator |
1.4 kg |
|
|
Weight of aerosol charge |
0.38 kg |
|
|
Working time |
20 |
|
|
Dimensions |
||
|
Diameter |
150 mm |
|
|
Height |
93 mm |
|
|
Activation unit |
BP-7.5-7.5 VRTH |
VEE, VELTH |
|
Resistance of the activation unit |
7.5-8.0 ohms |
2.5 - 4 ohms |
|
Minimum start-up current |
1А |
0.4 А |
|
Starting voltage |
In 12,0-24,0 |
1.5 - 24.0 V |
|
The duration of the trigger pulse |
not less than 1.5 sec |
not less than 0.1 sec |
|
The inertia of the generator start |
<1.5 sec |
|
|
Operating Conditions |
||
|
Operating Temperature Range |
± 50 °С. |
|
|
relative humidity at 25 ° C. |
98 % |
|
|
mechanical influences (in the frequency range up to 100 Hz) |
1g |
|
|
Classes of fire-fighting |
   |
|
