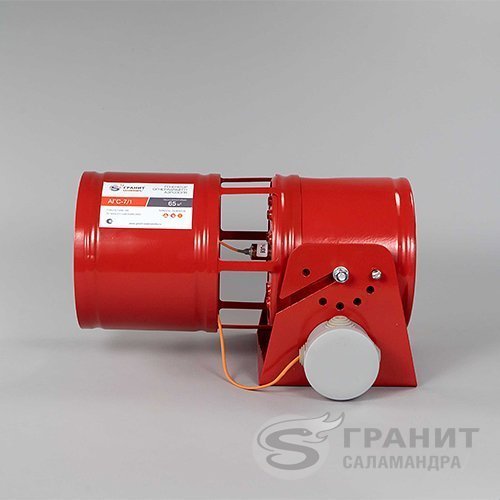

Aerosol Fire Extinguishing Generator AGS-7-1
Designed for generating gas-aerosol mixture at concentrations required to stop a fire. It is recommended to form fire-extinguishing systems for premises of average volumes.

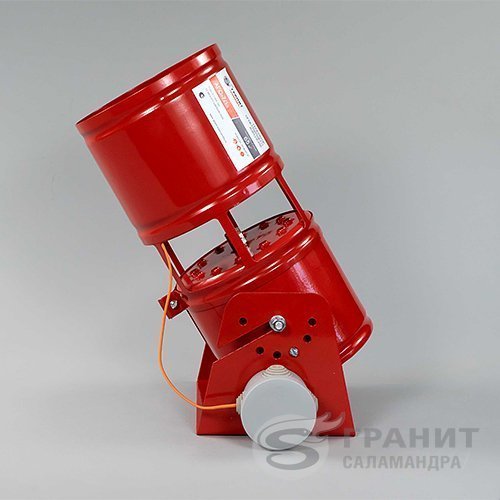

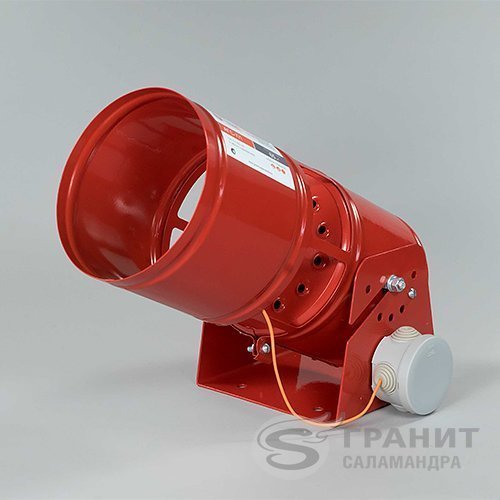

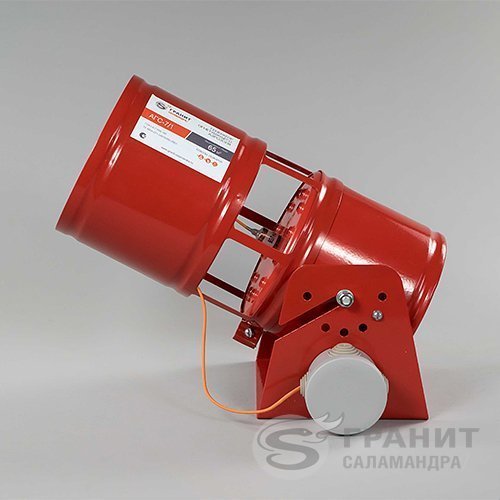

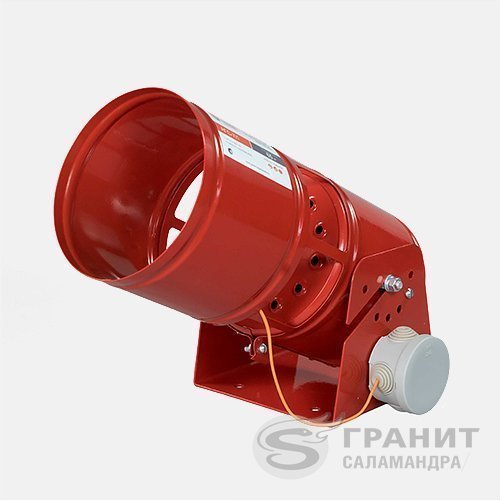

The generator consists of a cylinder with a metal case, which is located at the end of the nozzle cover. Due to the injector that is mounted on the generator, the aerosol and air begins to mix, which significantly reduces the temperature of the gas-aerosol spray.
Principle of operation:

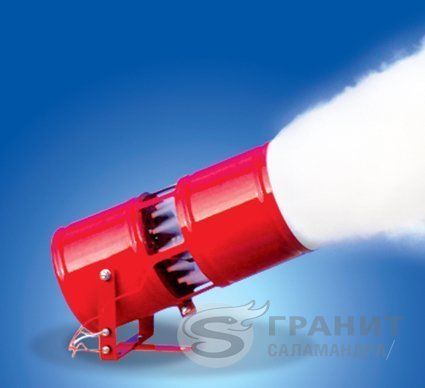

By applying an electrical or thermal pulse on node startup, a solid aerosol charge is ignited. Products of combustion pass through the nozzle on the cover of the generator, and the aerosol enters the designated area.
Manufacturer's warranty:
The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
The warranty period for the generator - 18 months.
Period - 5 years.
Service life - 10 years.
Activation units
* Type the activation unit pre-selected by the customer and installed in the generator during field installation
|
Maximum protected volume conditionally sealed room |
65 m3 |
|
|
Curb weight of the generator |
5.8 kg |
|
|
Weight of the aerosol charge |
3.4 kg |
|
|
Working time |
90 sec |
|
|
Dimensions |
||
|
Width |
205 mm |
|
|
Height |
355 mm with an injector |
|
|
Activation unit |
BP-7.5-7.5 VRTH |
VEE, VELTH |
|
Resistance of the activation unit |
7.5±0.8 ohm |
2.5 – 4 ohms |
|
Minimum start-up current |
1А |
0.4 А |
|
Starting voltage |
12 – 24 |
1.5 – 24 |
|
The duration of the trigger pulse |
not less than 1.5 sec |
not less than 0.1 sec |
|
The inertia of the generator start |
< 1.5 sec |
|
|
Operating Conditions |
||
|
Operating Temperature Range |
± 50 °С. |
|
|
relative humidity at 25 ° C. |
98 % |
|
|
mechanical influences (in the frequency range up to 100 Hz) |
0,5g |
|
|
Classes of fire-fighting |
   |
|
