Universal Air Cooled Generator AGS-11/3
Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.
Applies to:

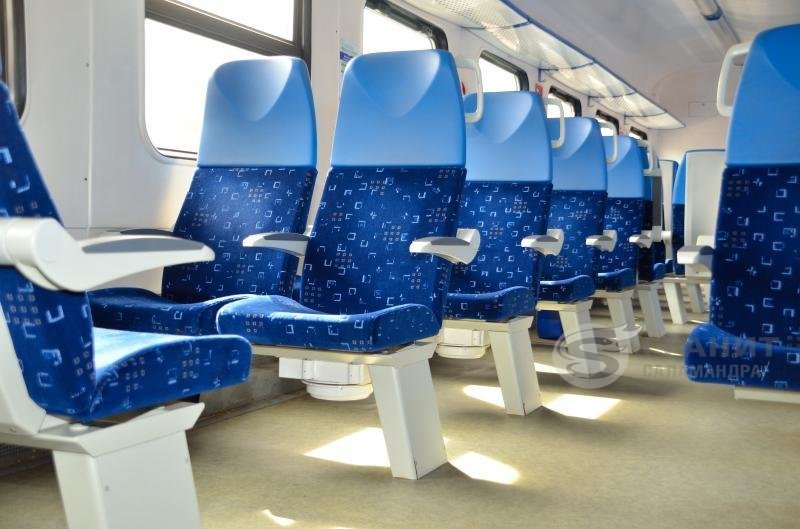

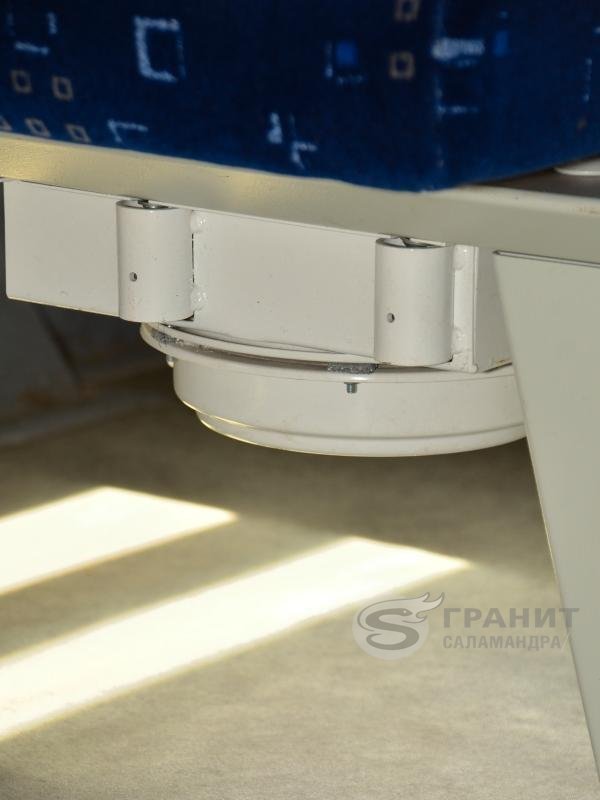

AGS-11/3 is recommended for the protection of vehicles, electronic equipment, high-voltage power installations, various high-frequency devices operating in including vehicles, since it corresponds to the requirements of vibration loads on railway / road and air transport.

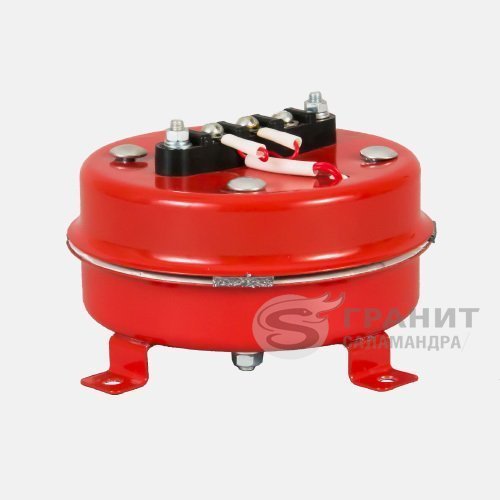

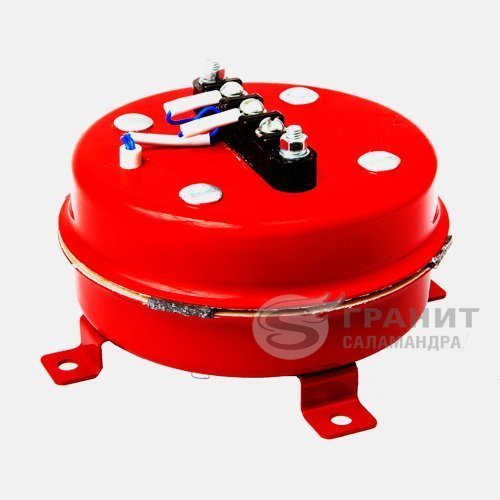

AGS-11/3 is a compact, low metal cylindrical body with a nozzle opening on the exterior side. With its small size, the generator provides a significant protective capacity - up to 6,0m3.
By changing the design of the system, the mass fraction of the condensed phase has been significantly reduced and lowered the temperature of the generator frame.
Principle of operation:
By applying an electrical or thermal pulse on activation node *a solid aerosol charge is ignited. Products of combustion exit through the nozzle gap of the generator and enter the protected area.
Manufacturer's warranty:
The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
The warranty period for the generator - 18 months.
Exploitation period - 5 years.
Service period - 10 years.
|
Maximum protected volume of conditionally sealed room |
6,0m3 |
|
Curb weight of the generator |
1.3 kg |
|
Weight aerosol charge |
0.3 kg |
|
Working time |
20 |
|
Dimensions |
|
|
Width |
150 mm |
|
Height |
85 mm |
|
Activation starter |
UST-7.5 |
|
Resistance of the activation starter |
7,8 ± 0,8 Ohm |
|
Minimum start-up current |
1.5А |
|
Starting voltage |
2 |
|
The duration of the trigger pulse |
not less than 2.0 sec |
|
The inertia of the generator starter |
<1.5 sec |
|
Operating Conditions |
|
|
Operating Temperature Range |
± 50 °С. |
|
relative humidity at 25 ° C. |
98% |
|
