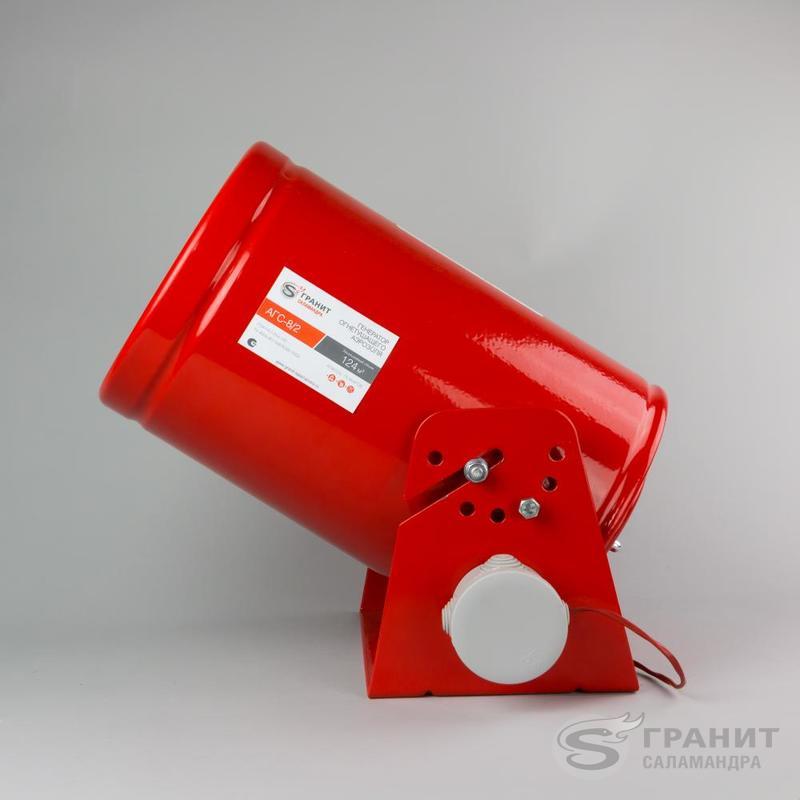

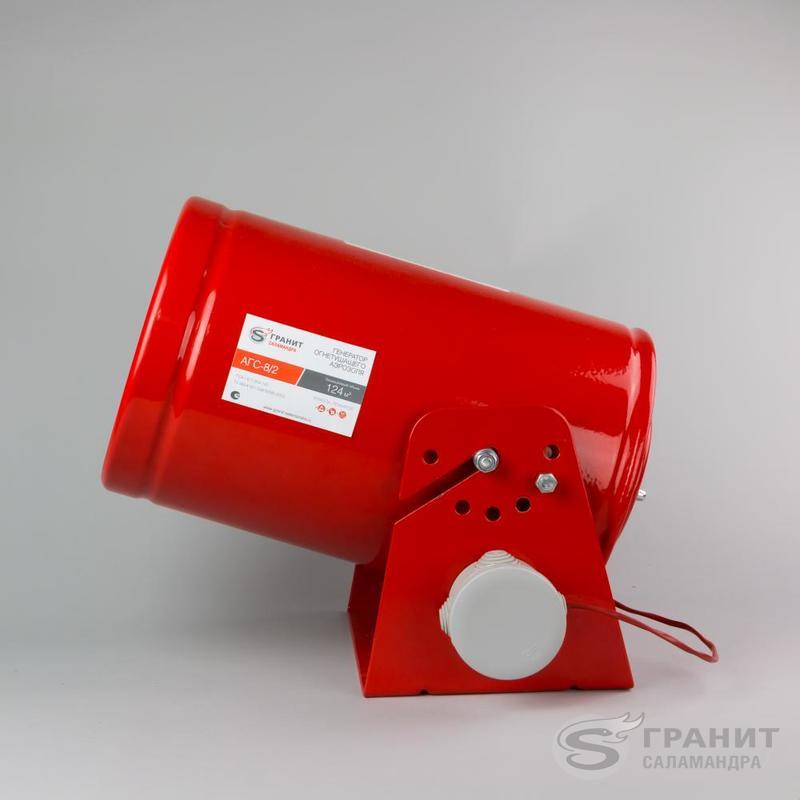

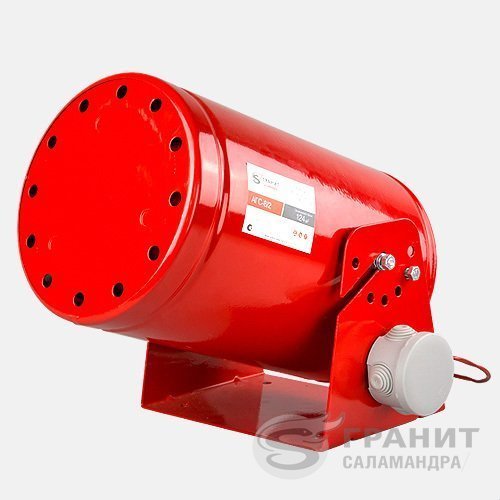

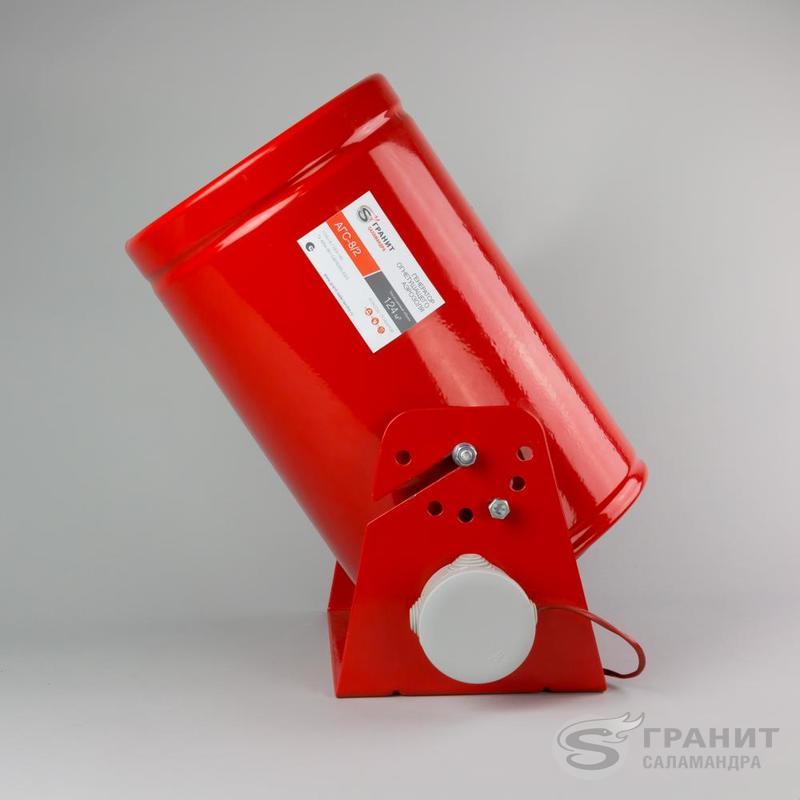

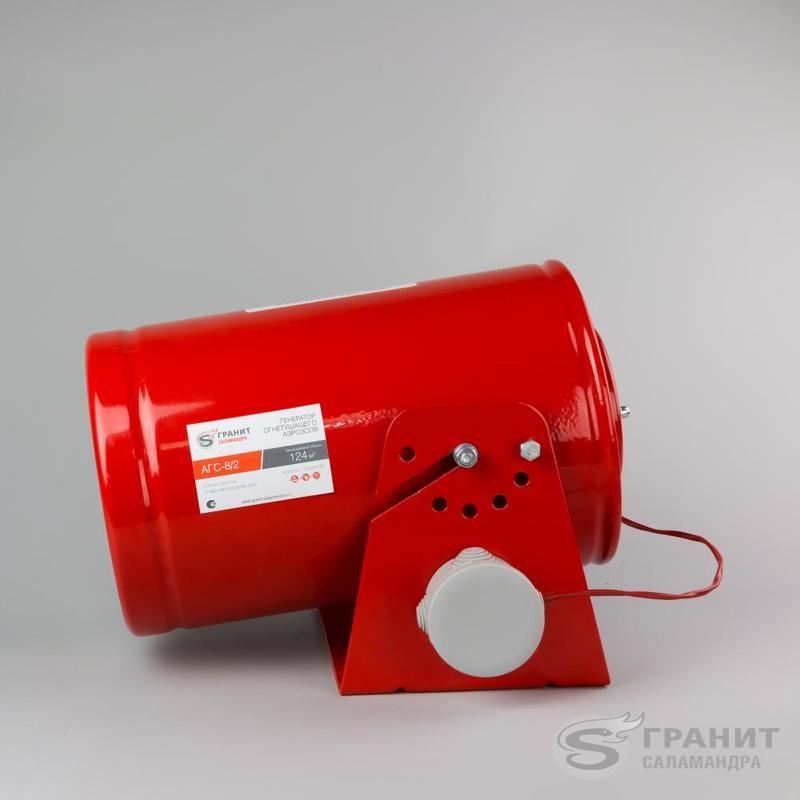

Fire Extinguishing Aerosol Generator AGS-8/2

Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.

Recommended to use fire-extinguishing systems for premises of large volumes.

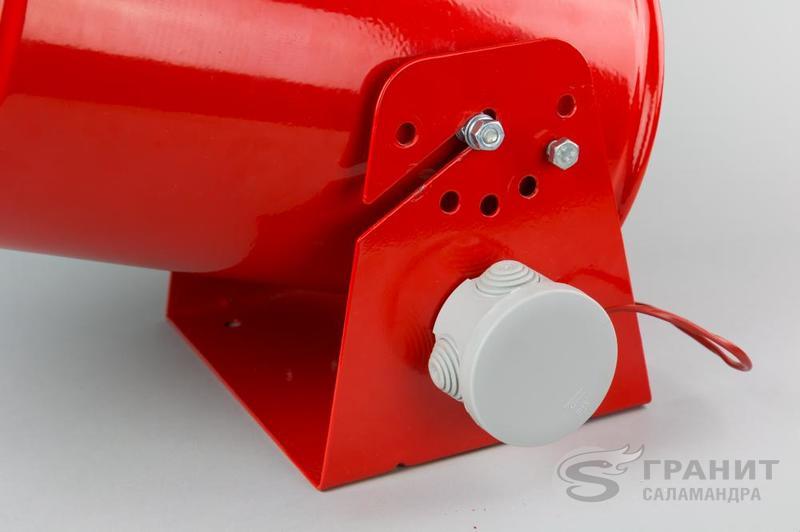

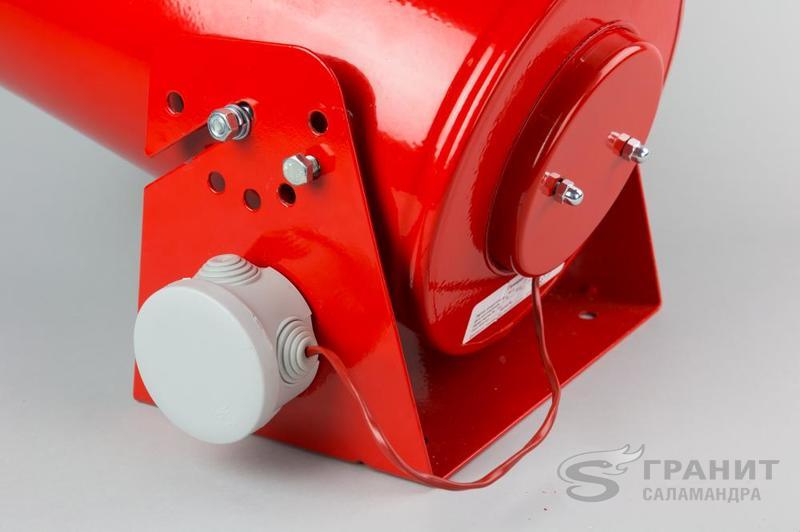

The generator consists of a cylinder with a metal case, which is located at the end of the nozzle cover. The AGS-8/2 is almost identical to the AGS-7/2,but due to labyrinth cooling system, the aerosol and air begins to mix, which significantly reduces the temperature of the gas-aerosol spray.

Principle of operation:

By applying an electrical or thermal pulse on node startup, a solid aerosol charge is ignited. Products of combustion pass through the nozzle on the cover of the generator, and the aerosol enters the designated area.

Manufacturer's warranty:

The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.

The warranty period for the generator - 18 months.

Exploitation period - 5 years.

Service period - 10 years.

Certificate (AGS-8/1, AGS-8/2 ) (Print)

Specifications

Maximum protected volume conditionally sealed room (d * <0,001 m-1)	124m³
Curb weight of the generator	19.5 kg
Weight of the aerosol charge	6.9 kg
Working time	170
Dimensions
Width	270 mm
Length	352 mm
Height	300 mm

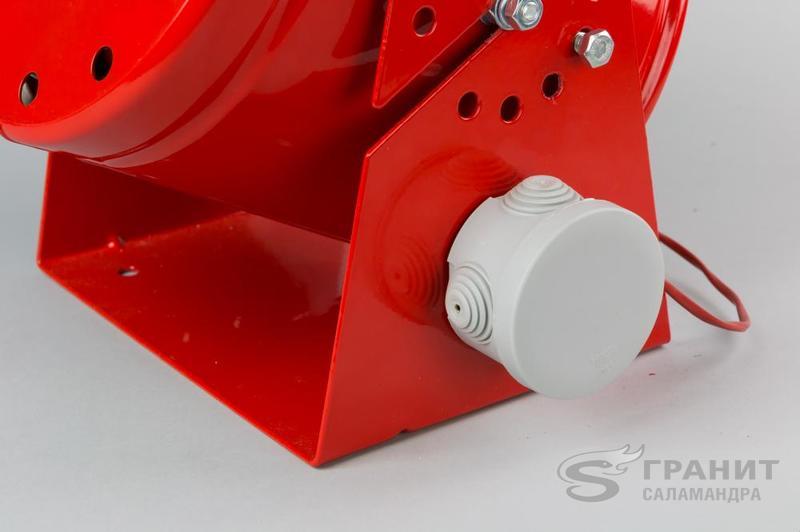

Activation starter	BP-7.5-7.5 VRTH	VEE, VELTH
Resistance of the activation starter	7.5 ± 0.8 ohm	2.5 - 4 ohms
Minimum start-up current	1А	0.4 А
Starting voltage	12-24	1.5 – 24
The duration of the trigger pulse	not less than 1.5 sec	not less than 0.1 sec
The inertia of the generator start	<1.5 sec
Operating Conditions
Operating Temperature Range	± 50 °С.
relative humidity at 25 ° C.	98%
mechanical influences (in the frequency range up to 100 Hz)	0,5g
