Universal Air Cooled Generator AGS-11/1

Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.

Applies to:

AGS-11/1 is recommended for the protection of vehicles, electronic equipment, high-voltage power installations, various high-frequency devices operating in including vehicles, since it corresponds to the requirements of vibration loads on railway / road and air transport.

Question to purchase

Description

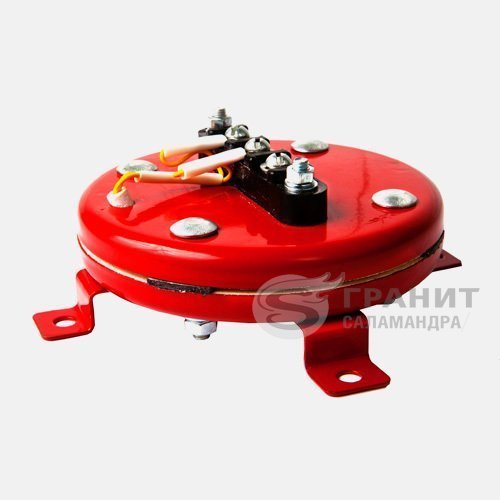

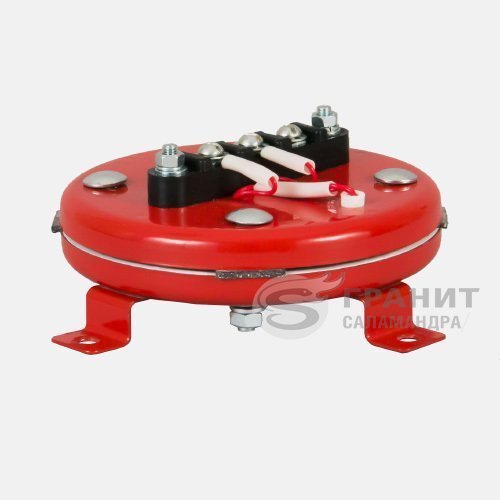

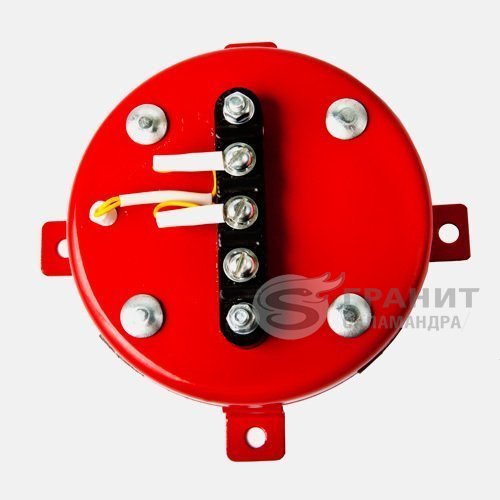

AGS-11/1 is a compact, low metal cylindrical body with a nozzle opening on the exterior side. With its small size, the generator provides a significant protective capacity - up to 2,2m3.

By changing the design of the system, the mass fraction of the condensed phase has been significantly reduced and lowered the temperature of the generator frame.

Principle of operation:

By applying an electrical or thermal pulse on activation node *a solid aerosol charge is ignited. Products of combustion exit through the nozzle gap of the generator and enter the protected area.

Manufacturer's warranty:

The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.

The warranty period for the generator - 18 months.

Exploitation period - 5 years.

Service period - 10 years.

Certificate (AGS-11) (Print)

Specifications

Maximum protected volume of conditionally sealed room (d * <0,001 m-1)	2.2m³
Curb weight of the generator	0.6kg
Weight of the aerosol charge	0.11 kg
Working time	8
Dimensions
Width	150 mm
Height	53 mm
Activation starter	UST-7.5
Resistance of the activation starter	7,8 ± 0,8 Ohm
Minimum start-up current	1.5А
Starting voltage	2
The duration of the trigger pulse	not less than 2.0 sec
The inertia of the generator starter	<1.5 sec
Operating Conditions
Operating Temperature Range	± 50 °С.
relative humidity at 25 ° C.	98%
Classes of fire-fighting
